RTL8812AU

The RTL8812AU is an old, expensive, but proven WiFi chip that can be found in a lot of network cards. AU based NICs have exceptional community support so that 5Mhz, 10MHz, 20MHz and 40MHz can receive and transmit! So AU based equipment can achieve exceptional bitrates, as for example on 21-04-2025 52Mbps was achieved in total (36Mbps video). On this page you can find information about known WiFi adapters with this chip.

BL-R8812AF1

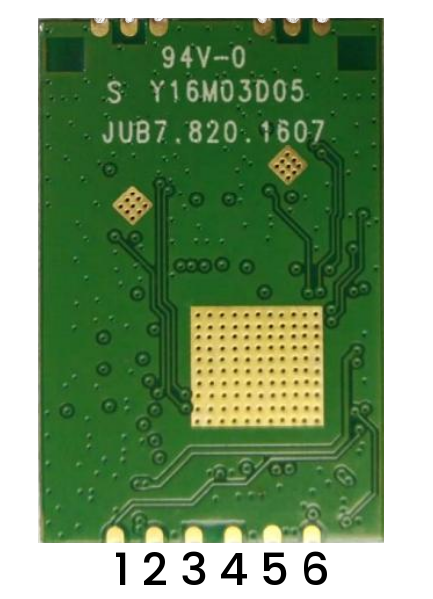

LB-LINK BL-R8812AF1 is small size, low power net card. It is very popular choice for toothpick builds. This net card can be found on EMAX Wyvern Link VTX Alpha 100mW. image

WiFi adapter image WiFi adapter image

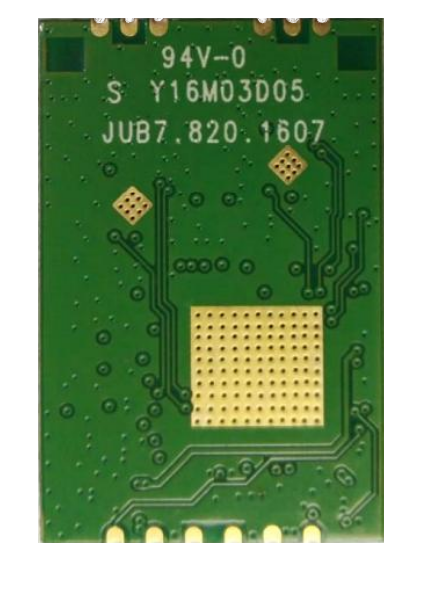

Pinout

Pin numberFunction
1PDN
2VDD(3.3V)
3DM-
4DP+
5GND
6LED

Specifications

Host interfaceUSB 2.0
Power SupplyDC 3.3V +-10%
Antenna connectionIPEX x2
Power output≤20dBm(≤100mW)
Supported modes5MHz, 10MHz, 20MHz, 40MHz

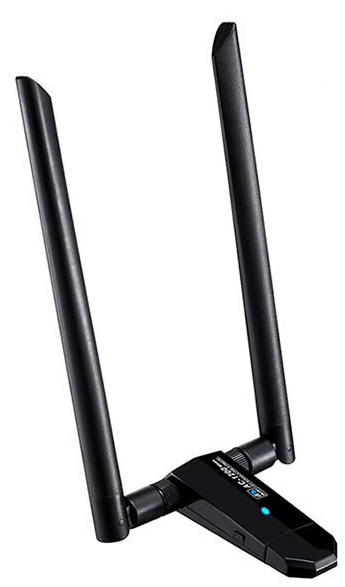

This is net card that you can get when buying WiFiLink-G set. It is low power so it is popular for Android GS use.


Specifications

Host interfaceUSB 3.0
Power SupplyDC 5V
Antenna connectionRP-SMA x2
Power outputNA
Supported modes5MHz, 10MHz, 20MHz, 40MHz
