RTL873xBU

RTL8731BU and RTL8733BU are very small WiFi chips, so RTL873xBU-based net cards are really small, because of that they are extremely popular for tinywhoops. But RTL873xBU-based net cards AREN’T SUITABLE FOR LONG RANGE AND RX USE. 5MHz, 10MHz, 20MHz, 40MHz modes are supported.

BL-M8731BU3

Layout

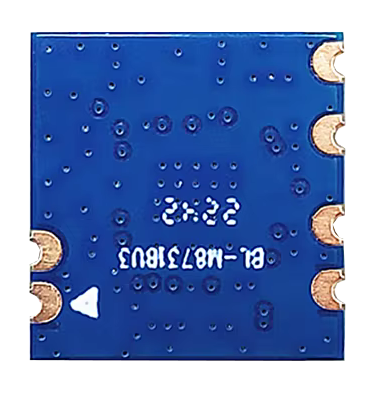

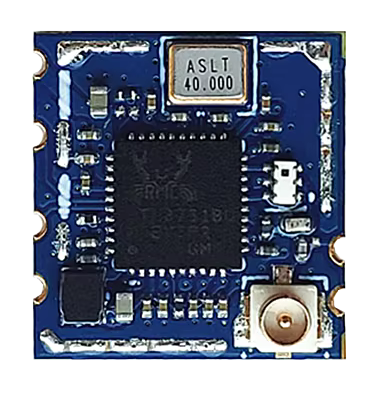

Top image Bottom image

Pinout


Pin numberFunction
1GND
2NC
3VDD 3.3V
4DM-
5DP+
6GND

Specifications

Host interfaceUSB 2.0
Power SupplyDC 3.3V
Antenna connectionIPEX
Power output≤17dBm(≤50mW)@5G ≤21dBm(≤125mW)@2.4G
Supported modes5MHz, 10MHz, 20MHz, 40MHz
