GroundStation on NVR

Upgrade from original HI3536DV100 NVR board firmware to OpenIPC FPV firmware

  • Install PUTTY and TFTP server
  • Download actual image for NVR from OpenIPC site
  • Upload this image to your TFTP server
  • Turn off NVR power, connect USB adapter to your NVR UART, specify which COM port on your PC
  • Go to U-Boot with quick press Ctrl+C at power on
  • Execute a set of commands each line separately
## Сhanging the ip address of the NVR board and the ip address of your TFTP server
setenv ipaddr 192.168.1.10; setenv serverip 192.168.1.254
mw.b 0x82000000 0xff 0x1000000
tftp 0x82000000 openipc-hi3536dv100-fpv-16mb.bin
sf probe 0; sf lock 0;
sf erase 0x0 0x1000000; sf write 0x82000000 0x0 0x1000000
reset

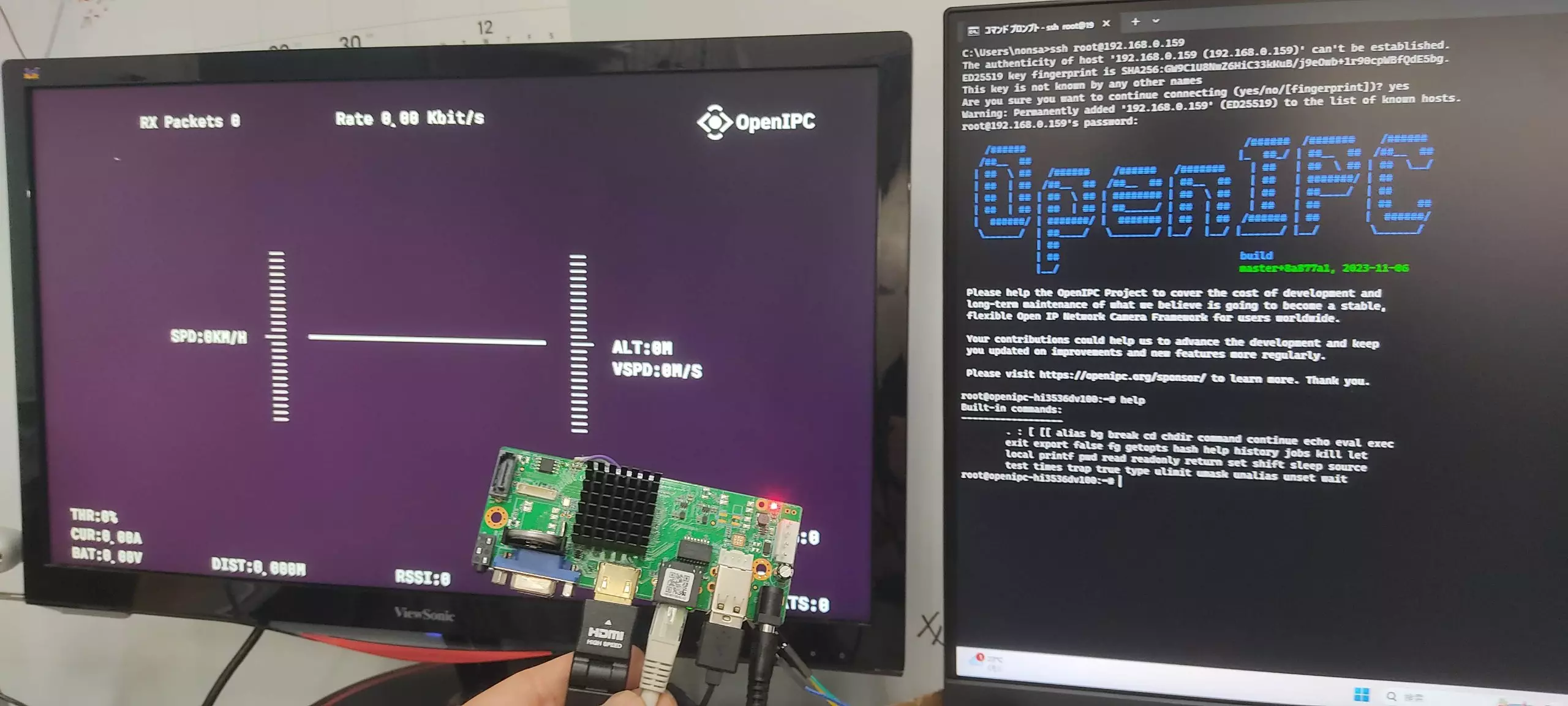

The result
